Post-processing

In order to get a polygonal model based on the scanned data one needs to use the Calibry Nest software.

There are two modes available: Quick Mode and Advanced Mode. The major difference between them is the set of applicable tools. In the Quick Mode there are only four buttons available for the user, whereas Advanced Mode offers full functionality to the user.

Quick Mode

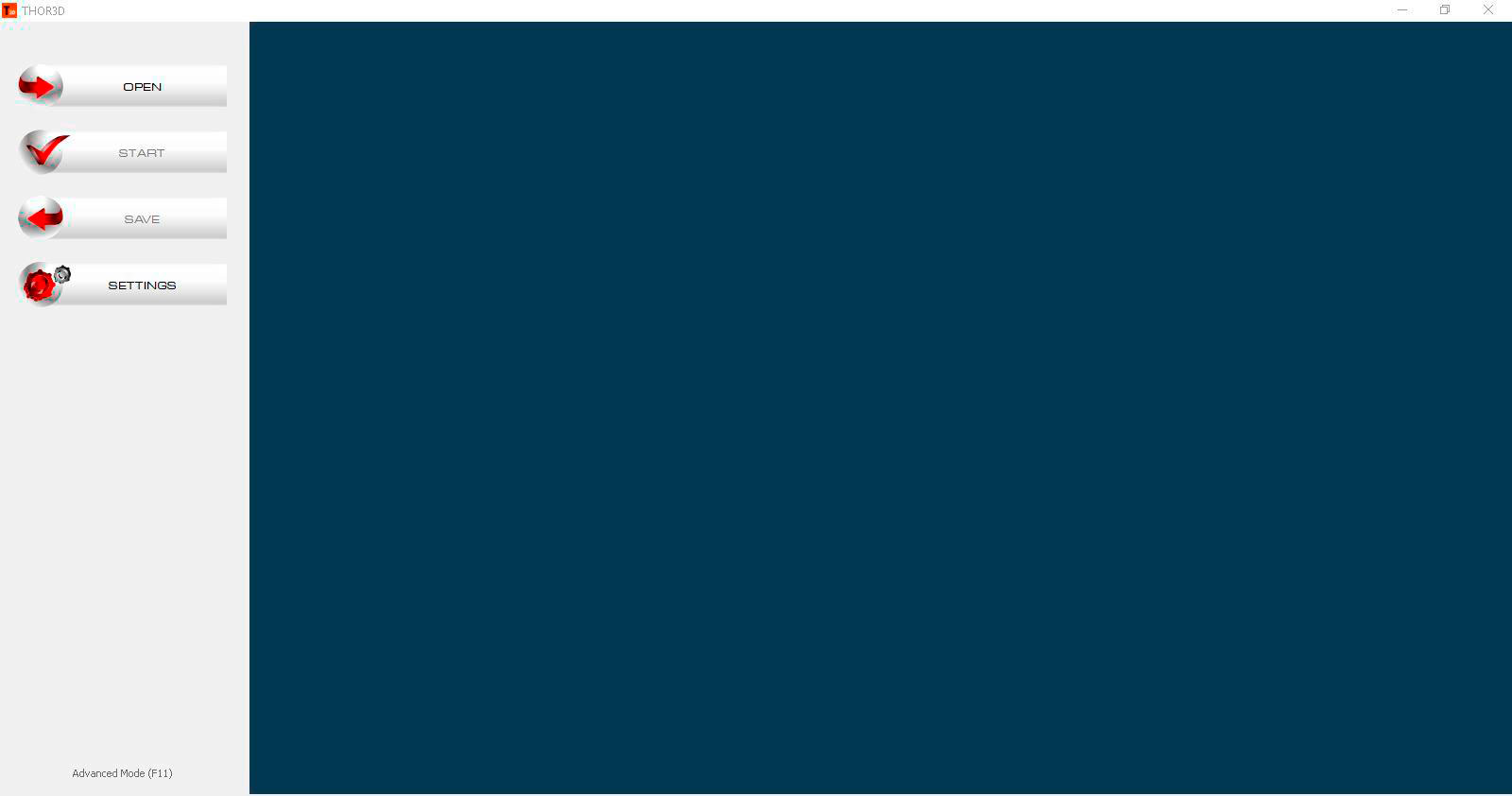

In the Quick Mode there are only four buttons available for the user:

Open – upload the .ascan file.
Start – engages the post procession with the selected settings.
Save – saves the result in one of the formats: STL, OBJ, WRL, PLY.
Settings – allows to change parameters to get a desirable result of the polygonal mesh.

Let’s have a look how it works on the example dataset:

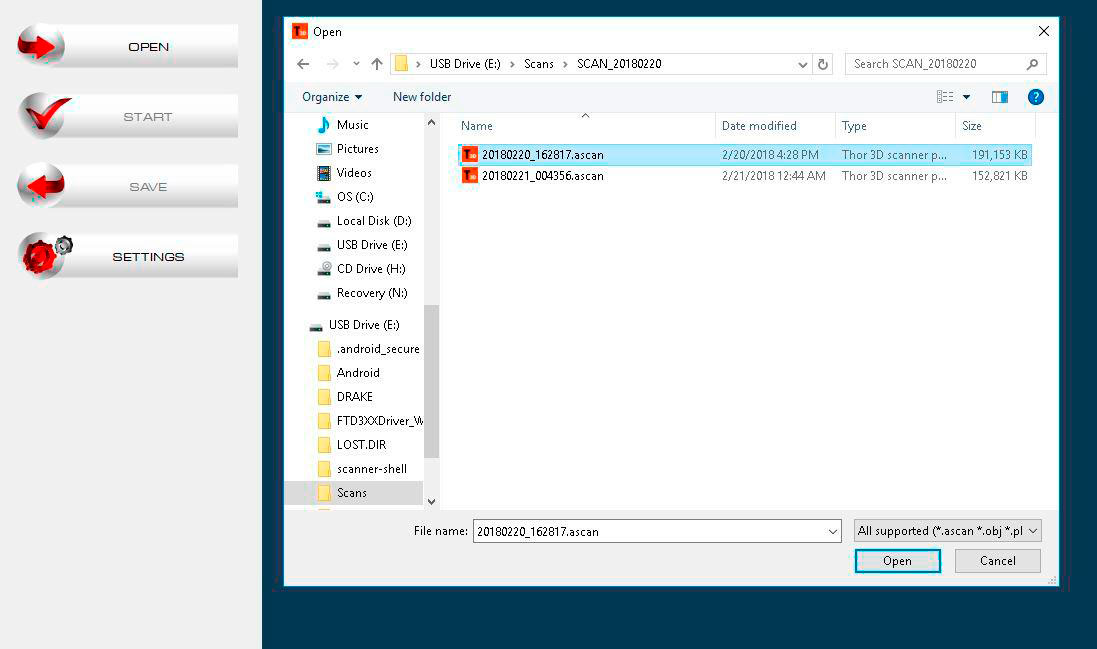

After the scanning session is complete we have an .ascan file, which we need to transfer to the computer either using USB drive or a local area Wi-Fi network. After we press Open, we select file destination. For example: USB drive -> Scans -> project folder -> file name.

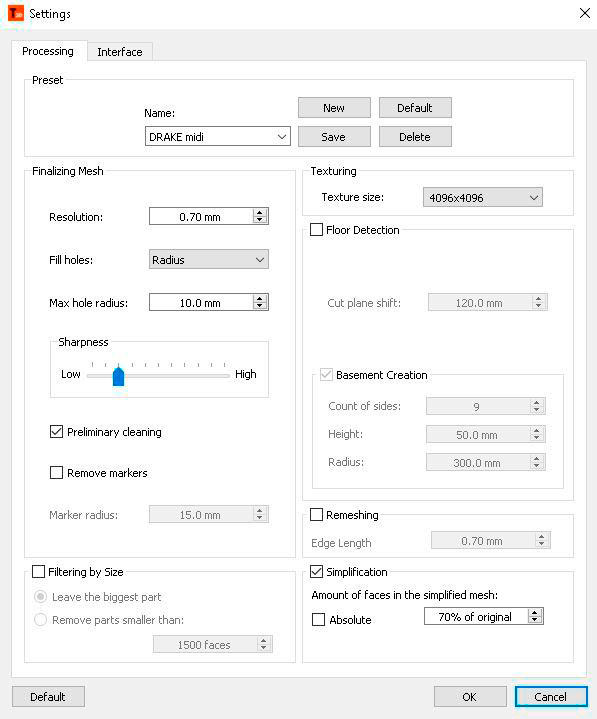

When all files are successfully uploaded in the software, we need to select preferred Settings. In the dialog window we choose values for such parameters as filling holes, resolution, filtering by size, simplification and so on.

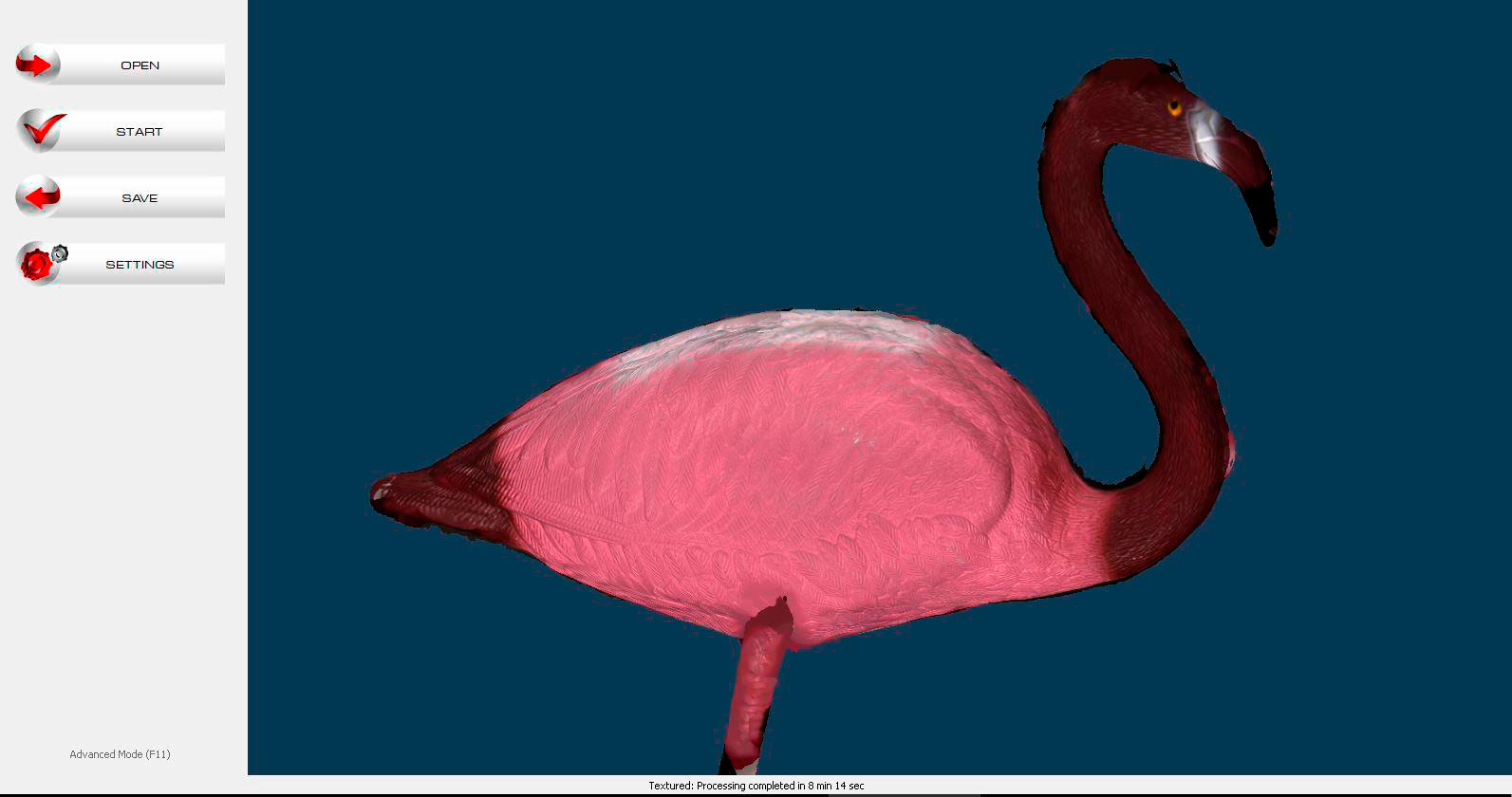

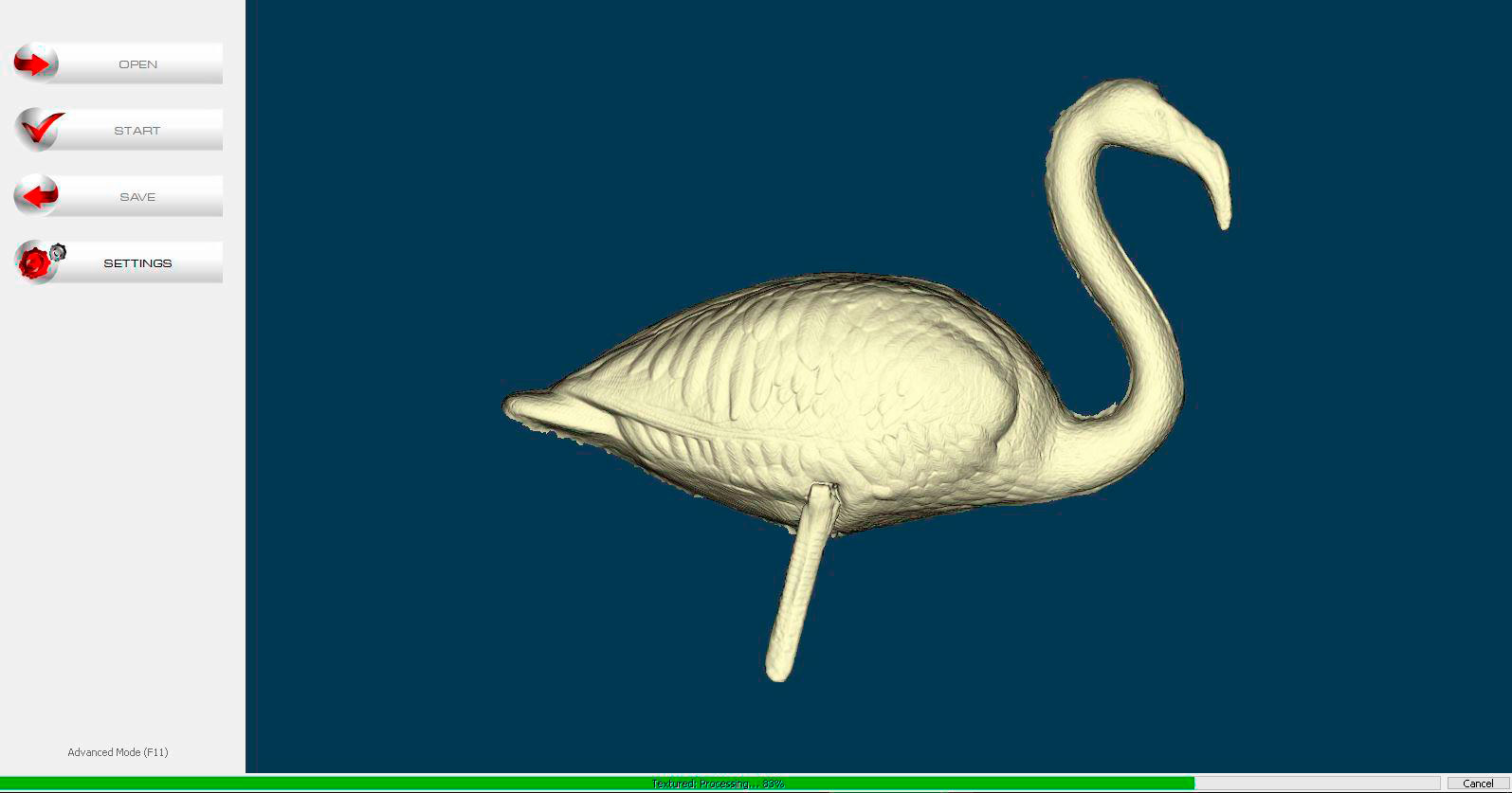

When we are done with the settings the next step is to engage post procession by pressing Start. In the bottom of the screen there is a progress bar which shows in percentage what part of the process is complete.

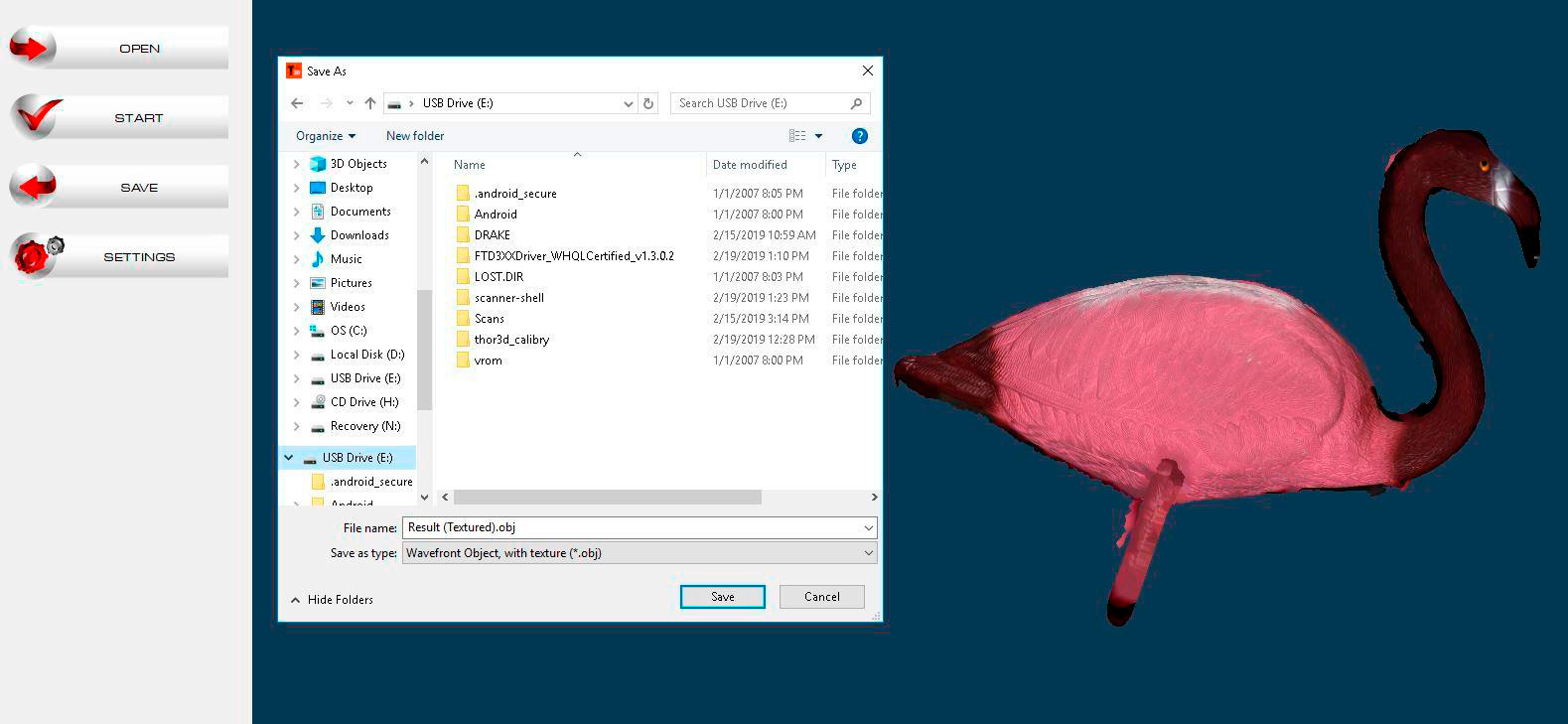

The result is a polygonal model. It can be saved in one of the formats: PLY, OBJ, STL, WRL.

Advanced Mode
Start non-textured – start post-procession, this includes registration of the surfaces and finalization of the polygonal mesh.
Start textured – allows to apply texture map to the polygonal result.
Start multiple non-textured – post-procession of several scans into one combined result.
Start multiple textured – allows to receive a texturized result based on the data from several scans.

With the help of this icon user may select preferable settings.

After the scanning session is complete, the scanner produces an .ascan file, which needs to be transferred to the computer either using USB drive or a local area Wi-Fi network. Press Open to select file destination. For example: USB drive -> Scans -> project folder -> file name.

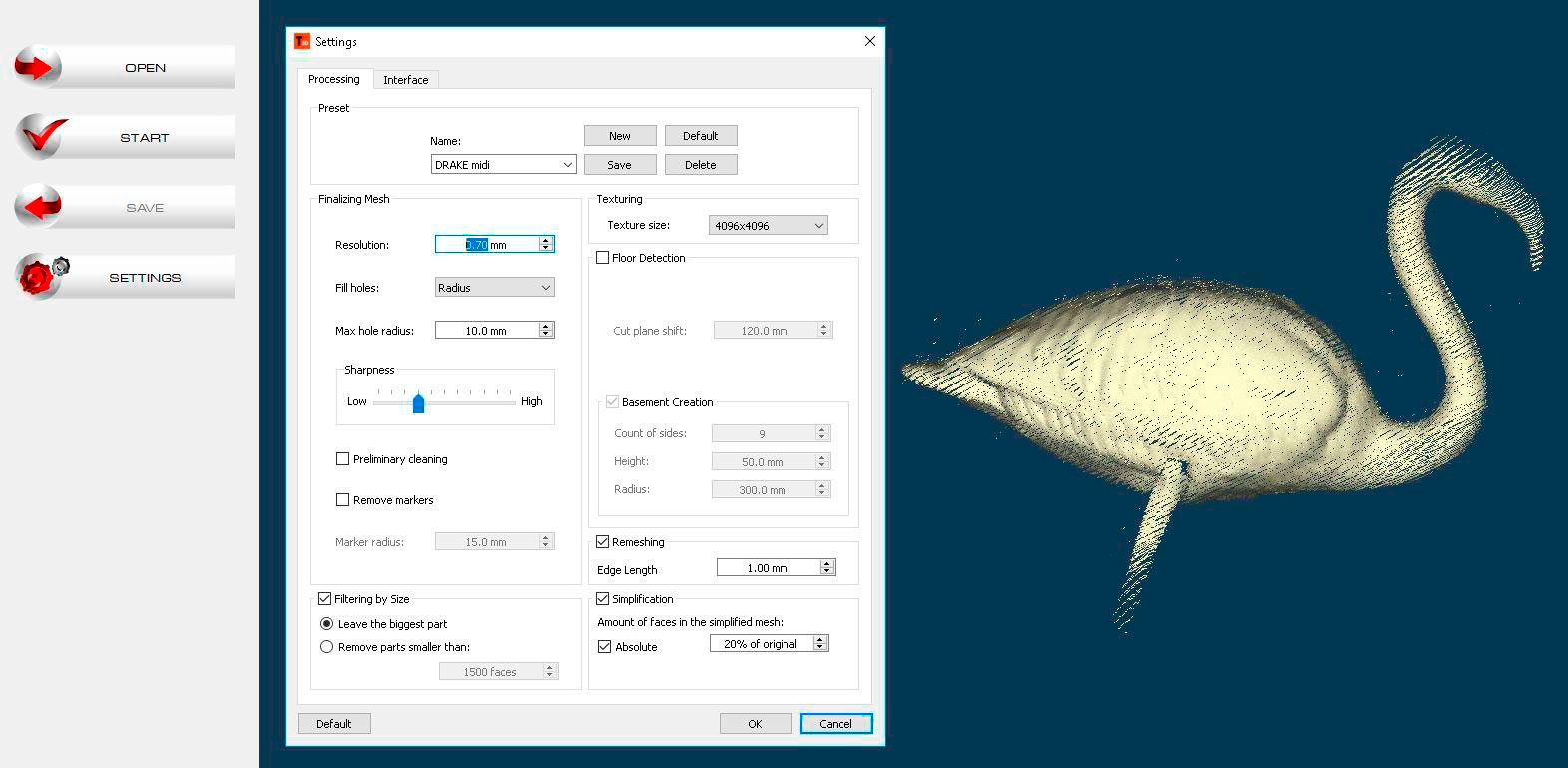

When all files are successfully uploaded in the software, choose the desired Settings (in the dialog window choose values for such parameters as Filling holes, Resolution, Filtering by size, Simplification and so on).

Depending on the needs, select one of the four options to start post-procession.

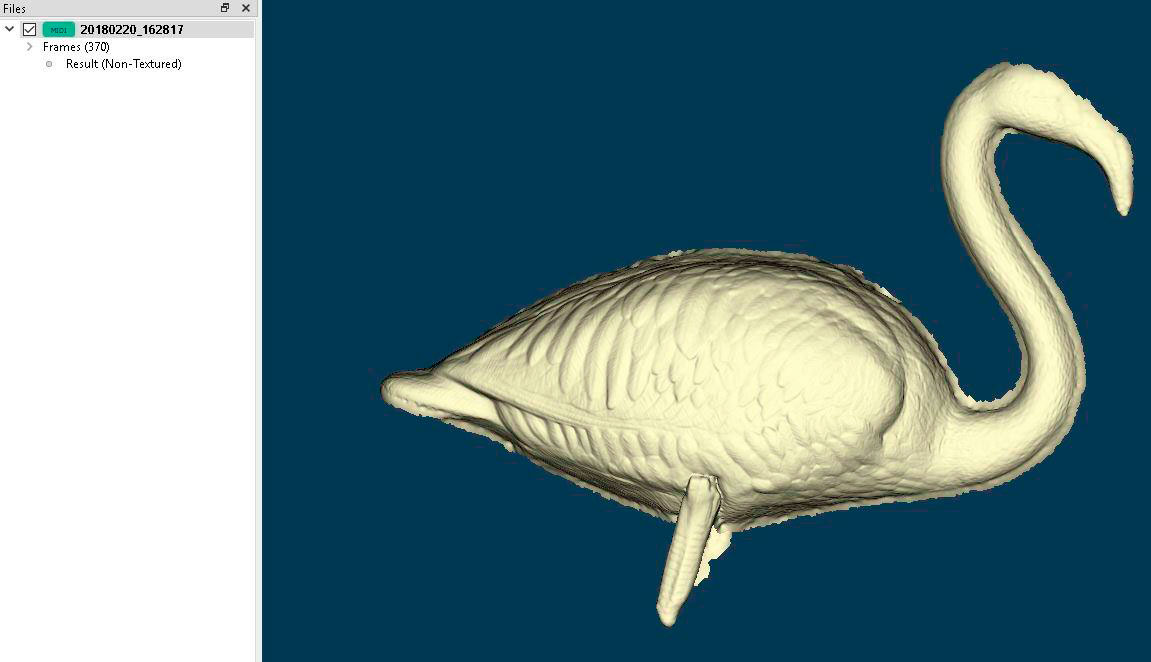

When the post procession is done the result will appear in the file tree on the left. This process may take from 1 minute to hours, depending on the file size and hardware specs of your computer.

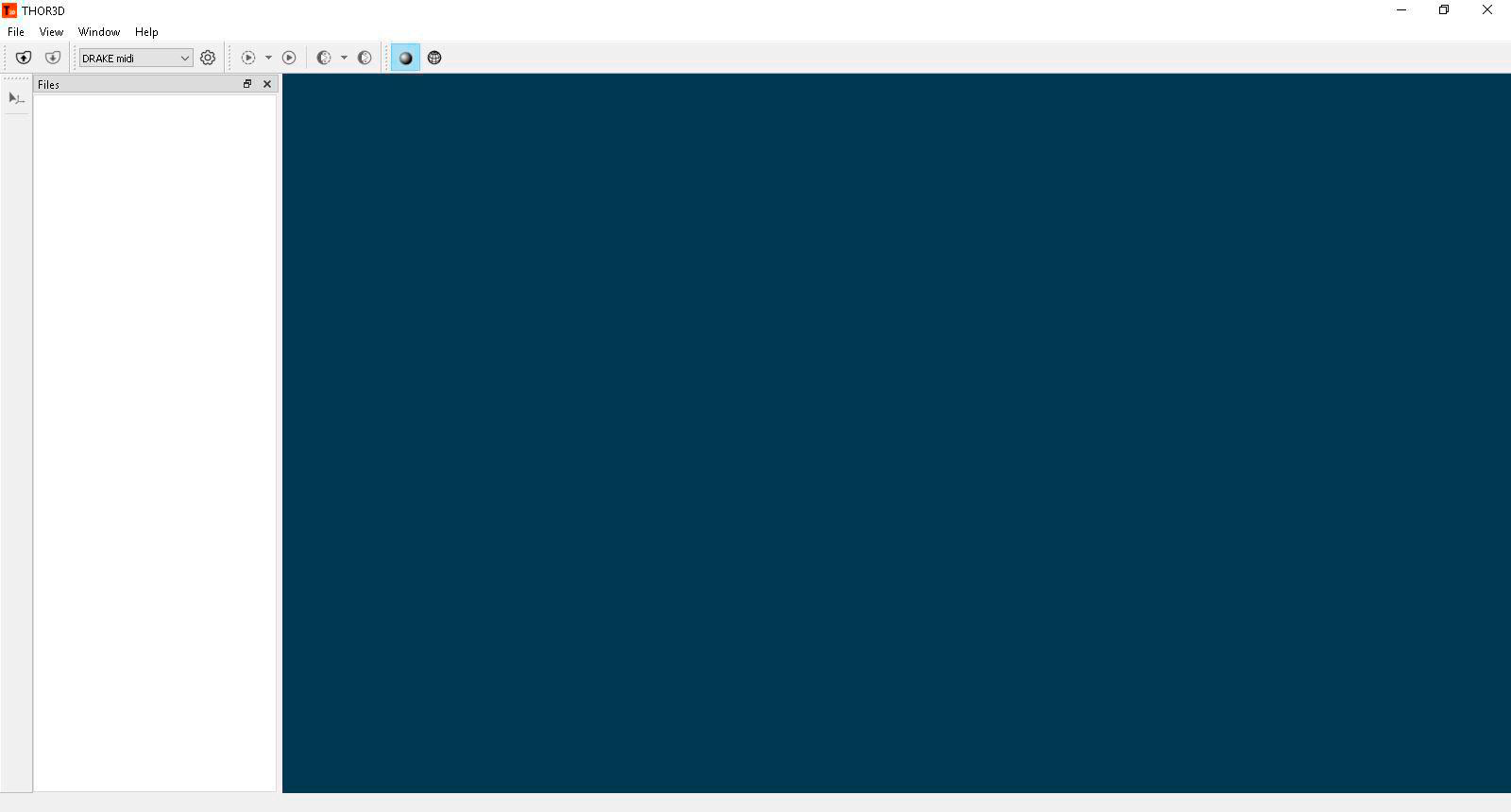

The Advanced mode of the Calibry Nest software allows to edit the polygonal result with this set of instruments:

Selection tools. There are four types of selection instruments and two options to delete selected area:

Marquee Brush Tool – Used for front surface selection

Marquee Brush Tool (Double Side) – Select all surfaces sides

Polygonal Lasso Marquee (Double Side)

Magic Wand Tool – Select the whole object

Cut marked area

Cut on frames

Surface editing tools:

Fill selected holes

Smooth area

Measurement tools:

Ruler

Read more about these features in the User Manual.

There are texture adjustment tools for texturized results:

Luminosity brush

Adjust texture brightness, contrast and color balance

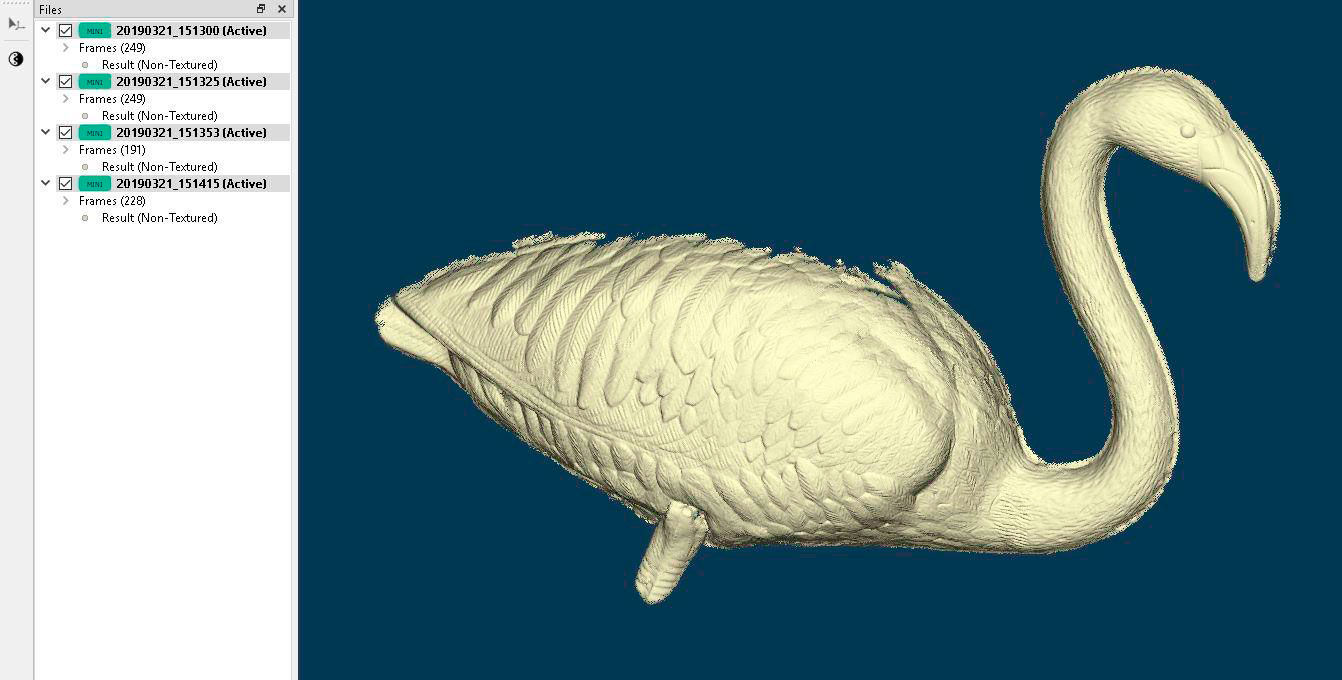

Multiple post procession is used in situations when merging several separate scans into one final mesh is required. Before running multiple post-procession function, scans need to be aligned correctly.

Align by points tool is used for that:

Open alignment working area

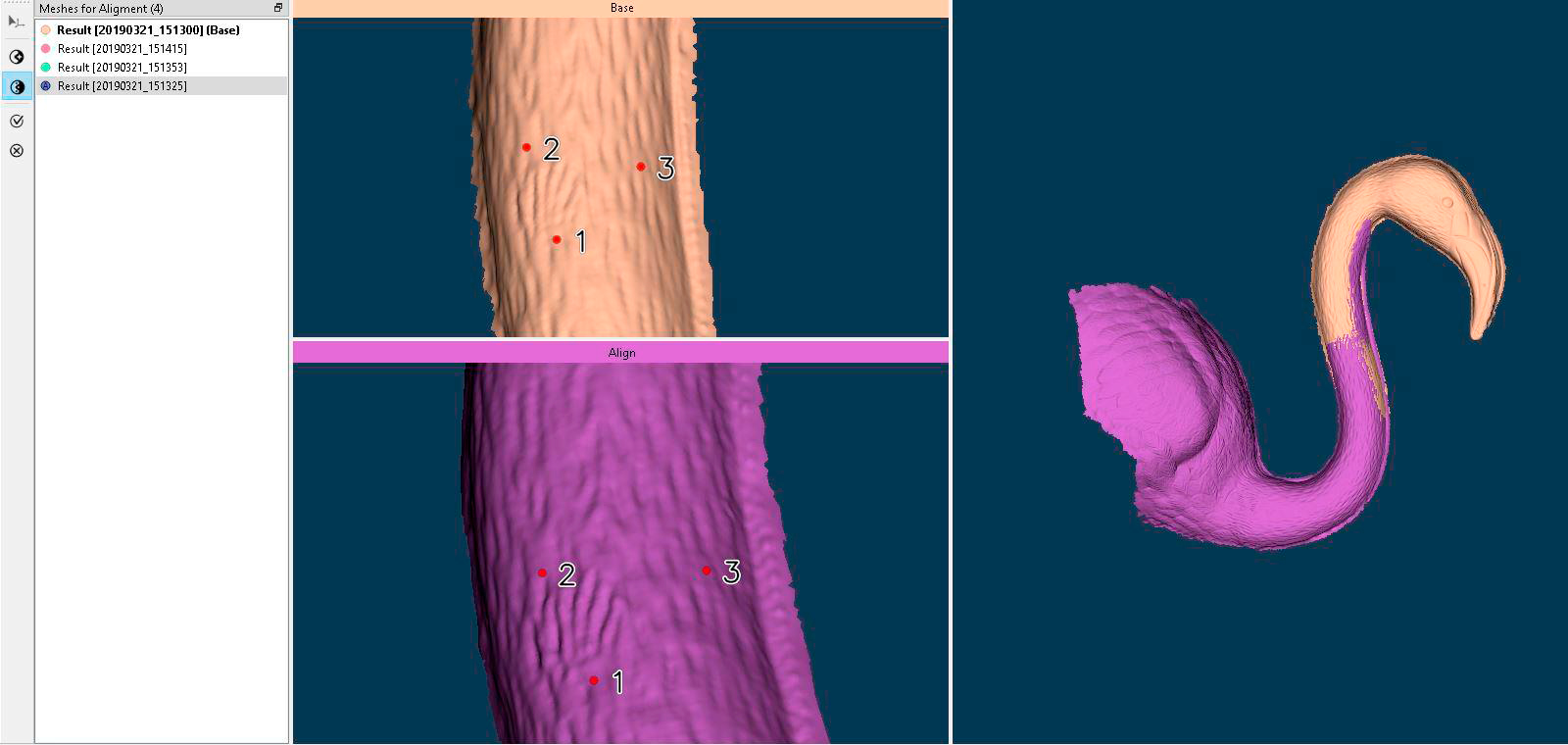

Position three points on the Base and Align models in similar areas.

The software will merge two scans by the selected points. The user will need to add aligned scan to base and repeat the procedure for the rest of the files in the list.

Luminosity brush

When all scans are properly aligned multiple post proccession can be started.

After editing is complete, save the whole project or just the polygonal result as STL, OBJ, WRL or PLY. File -> Save project/result as.
